T-RAIL Screed Rails provide the construction industry with an economical, efficient and environmentally friendly alternative to traditional steel and timber formwork systems.
Made from 100% recycled materials, T-RAIL is lightweight, durable and does not require removal after placement of concrete. It is easily cut to length on site and has pre-drilled holes in the vertical face for placing steel dowel bars and in the base for anchoring.
T-RAIL’s design features a removable top strip for joint sealing and its unique end clips allow for quick and easy installation.
T-RAIL is suitable for pours of 100mm up to 225mm thick. It can also be used when installing linear drainage and to act as edging in concrete paving.
Typical applications include petrol forecourts, oil refineries, transport, industrial and agricultural
T-RAIL is a screed rail system available in two height options, complete with extension and Domino jointing pieces. The rails feature factory-drilled holes for dowel bars and securing, allowing for quick and easy concrete slab formation.
Typical Applications
T-Rail Screed Rails are typically used in construction projects involving the laying of concrete slabs. Specific applications include:

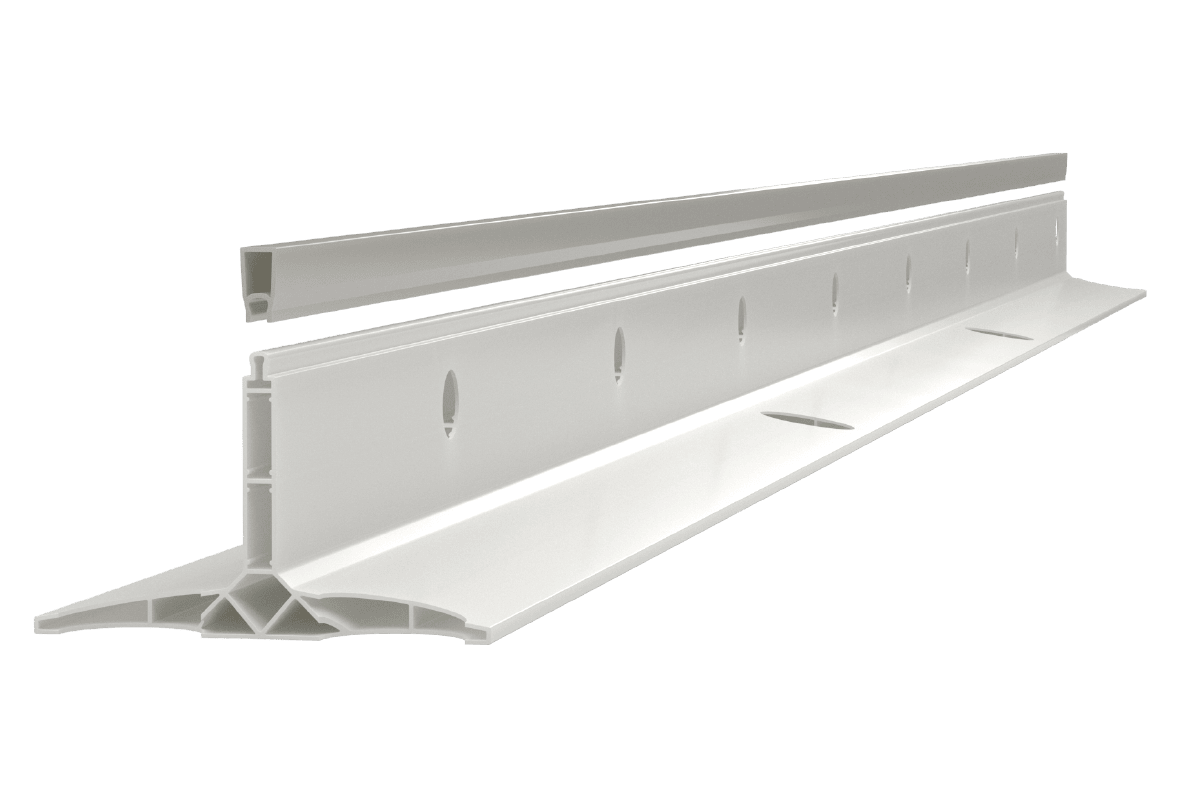

T-RAIL 85MM x 2.4M
To form concrete slabs 100mm – 140mm deep

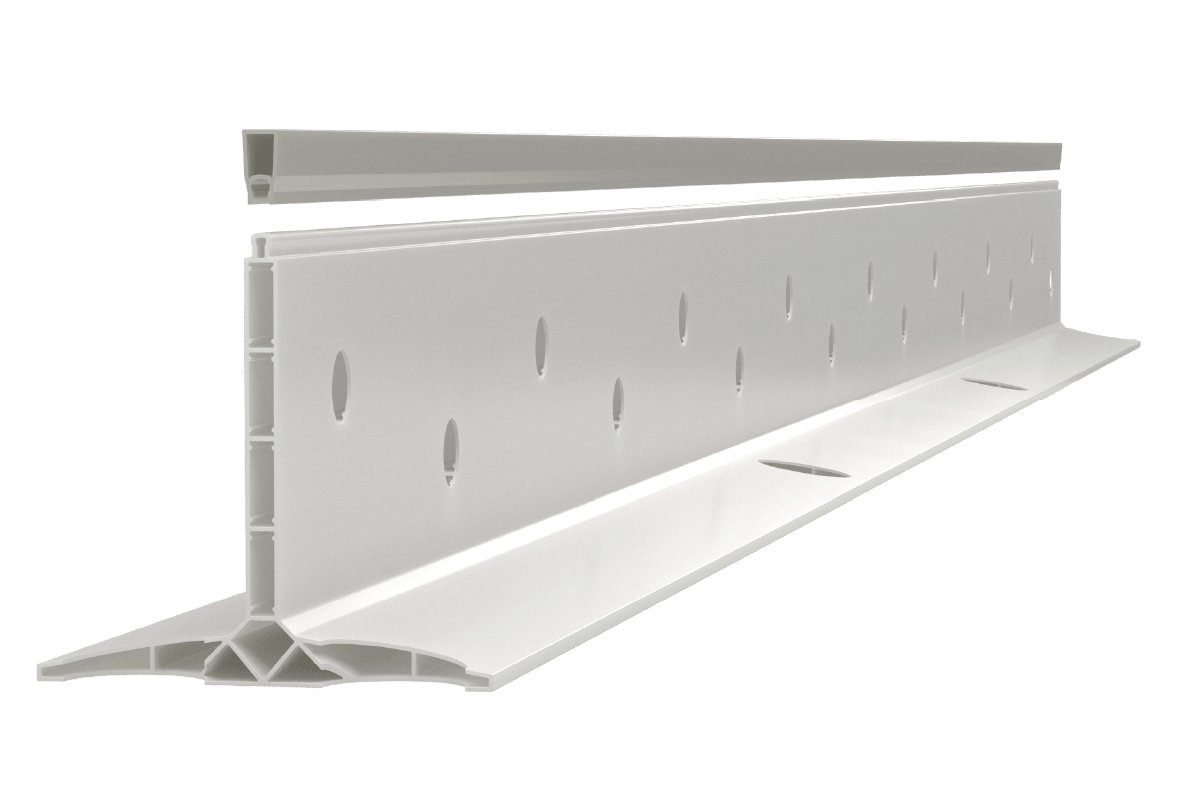

T-RAIL 135MM x 2.4M
To form concrete slabs 150mm – 225mm deep
T-RAIL EXTENDER RISER 25MM x 2.4M
Where 25mm extra height is needed (or 50mm using two strips). Connects with ease and precision
